UHF Coaxial Lightning Arrestor PL-259 Lightning Surge Protector PL259 Socket ...

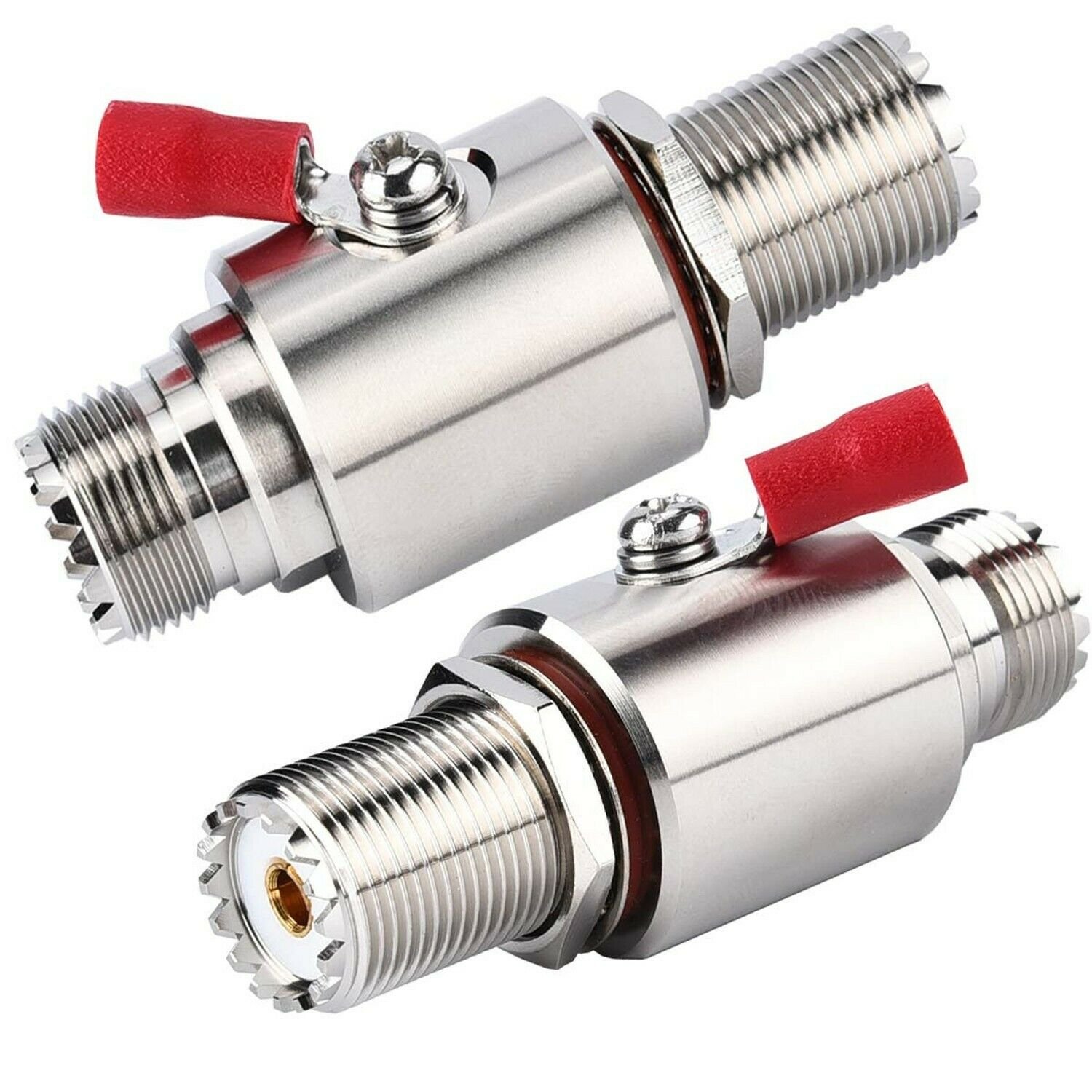

UHF Coaxial Lightning Arrestor PL-259 Lightning Surge Protector PL259 Socket (UHF Female) to SO239 Socket (UHF Female) Bulkhead CB Radio, HAM Radio Gear, 2-Way Base Stations Description It is a coaxial UHF Lightning Protector that operates over the frequency range of DC-1 GHz. It uses a 90V gas discharge tube to shunt electrical surges and transients to ground, protecting sensitive communications equipment from these events. It is a great UHF lightning protection solution for Ham radio and other lower frequency Antenna. This model features PL259(UHF Female) Socket TO SO239 Socket(UHF Female) for mounting through an enclosure wall or the arrestor can be used inline. SO239 259 arrester will pass DC,so SO-239 surge protector is suitable for applications where DC is carried through the coax cable. Both UHF connector ports of this unit are equally protected -- it can be installed in either orientation. A ground lug and terminal on the housing provide superior grounding. Specification: Frequency Range: DC-1GHz Discharge Voltage: DC90V Impedance: 50 ohms Insertion Loss: Features: 1.Coaxial UHF Lightning Arrester,PL259(UHF Female) Socket TO SO239 Socket( UHF Female) ,PL-259 Lightning surge protector for Coaxial cable. With ground screw connection for easy install2.Run a piece of heavy gauge copper wire (8 or 10 gauge) from the grounding screw on the side of the arrestor to a 3 foot minimum length grounding rod driven into the ground3.High quality construction,reliable Wide-Band Performance from DC-1GHz, insertion loss 0.1dB and VSWR 1.2 ,Replaceable 90V Gas Tube Element with High Surge Power Capability High Surge Power Capability4.A great UHF PL259 arrestor to protect your life, protectors offer HF/VHF/UHF other frequency equipment with extremely low loss. They boast an insertion loss of less than 0.1 dB. Ideal for CB Radio, HAM Radio Gear, 2-Way Base Stations.5.SO239 arresters should be installed as close as possible to the equipment to be protected, often at the point where the coax cable enters the building. They can also be installed near the antenna for additional protection Product Details: Product Dimensions: 2.5 x 1 x 1 inchesItem Weight: 3.2 ouncesShipping Weight: 3.2 ouncesManufacturer: rf-sodoItem model number: UHF-KKY-G Payment We accept Paypal payments only. Sales tax may be applied to your purchase as we possess sales tax certificates for all states we collect sales tax in. If your state is one that we charge sales tax in, you will see the sales tax charge at time of checkout before you submit payment. Delivery Expedited shipping is free. Handling time on our orders is normally between 1-2 business days. Your order should reach you within 1-3 business days. We do not ship to AK, HI, PO boxes, or APO addresses. We're not responsible for any incorrect or undeliverable addresses. We only ship to the confirmed Paypal address. We don't accept requests to change shipping addresses post purchase. We do not ship to AK, HI, PO boxes, or APO addresses. We are not responsible for any incorrect or undeliverable addresses. We only ship to the confirmed Paypal address. Please note that manufactures update their packaging from time to time and that the packaging images shown in our product may vary from what you ultimately receive however be assured you are receiving the identical contents you ordered. Return Policy You may return new, unopened items within 30 days of delivery for a refund, and a restocking fee may apply. Return shipping fees are not refundable. Message us for return instructions if you have questions. Support & Feedback We take our reputation seriously, we buy and sell online, so we understand the value of trust. If you are unsatisfied with your order, please contact us and we will work with you to resolve it to your satisfaction. Contact us via eCRATER messaging and we will respond within 1 business day. Our office hours are 8AM-4PM PST Monday-Friday. We thank you for your business!
